Canopy

Renders diagram source files to PNG/SVG using Kroki. No runtime dependencies — uses only Node.js built-ins.

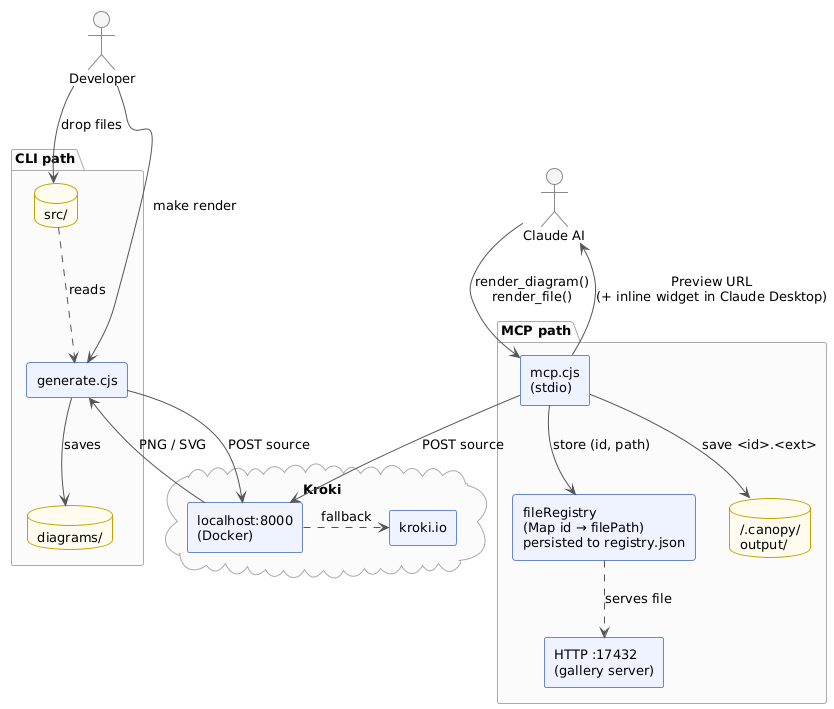

Two usage modes:

• CLI — drop source files into src/, run make render, get images in diagrams/
• MCP server — AI tools (render_diagram, render_file) render on demand and return a one-click preview URL

---

Quick start

make up        # start local Kroki (Docker)
make render    # render all files in src/ → diagrams/

Output lands in diagrams/.

---

CLI usage

make render                                  # render everything in src/
make render FILE=public/flow.puml            # single file
make render DIR=src/public                   # subdirectory → diagrams/public/
make render DIR=src/public OUT=out/pub       # custom output directory

---

Supported formats

Format is detected from the file extension. Unsupported extensions are skipped.

Extension(s)	Kroki type
.puml, .plantuml	plantuml
.c4puml	c4plantuml
.mmd, .mermaid	mermaid
.dot, .gv	graphviz
.d2	d2
.dbml	dbml
.ditaa	ditaa
.erd	erd
.excalidraw	excalidraw
.blockdiag	blockdiag
.seqdiag	seqdiag
.actdiag	actdiag
.nwdiag	nwdiag
.packetdiag	packetdiag
.rackdiag	rackdiag
.bpmn	bpmn
.bytefield	bytefield
.nomnoml	nomnoml
.pikchr	pikchr
.dsl	structurizr
.bob	svgbob
.symbolator	symbolator
.tikz	tikz
.vega	vega
.vegalite	vegalite
.wavedrom	wavedrom
.wireviz	wireviz

To add a format, edit the KROKI_TYPE map in generate.cjs. Full list: https://kroki.io/#support

---

Markdown files

Embed diagrams as fenced code blocks using the diagram type as the language name. Each block is rendered individually and saved to a sub-directory named after the .md file.

Title syntax

Add a title after the language name on the opening fence line:

```plantuml "User Registration Flow"
@startuml
Alice -> Bob: hello
@enduml
```

→ diagrams/architecture/User Registration Flow.png

```plantuml user-flow
```

→ diagrams/architecture/user-flow.png

Without a title, files are named by type and sequence number: plantuml-01.png, mermaid-01.png, etc.

Example

```plantuml "Sequence Overview"
@startuml
...
@enduml
```

```mermaid data-flow
graph TD
    A --> B
```

Render a markdown file:

make render FILE=src/architecture.md

Output for src/architecture.md:

diagrams/
└── architecture/
    ├── Sequence Overview.png
    └── data-flow.png

---

Project structure

canopy/
├── generate.cjs        # CLI renderer
├── mcp.cjs             # MCP server + HTTP preview server
├── lib/renderer.cjs    # shared rendering logic
├── Makefile
├── docker-compose.yml
├── src/
│   ├── public/         # committed — shared diagrams
│   └── private/        # gitignored — sensitive diagrams
└── diagrams/
    ├── public/         # committed
    └── private/        # gitignored

Sub-directory structure is mirrored from src/ to diagrams/ automatically:

src/public/flow.puml     →  diagrams/public/flow.png
src/public/arch.md       →  diagrams/public/arch/sequence.png

---

Local Kroki server

Run your own Kroki instance via Docker to avoid sending diagrams to the public server.

make up        # start all containers (detached)
make down      # stop and remove containers
make restart   # restart containers
make status    # show container status

The script checks http://localhost:8000 automatically on every run:

Kroki: checking http://localhost:8000 ... ok

If unavailable, it asks before falling back to https://kroki.io.

Containers started by docker-compose.yml:

Service	Image	Covers
kroki	yuzutech/kroki	Core (PlantUML, C4, GraphViz, D2, Mermaid, etc.)
mermaid	yuzutech/kroki-mermaid	Mermaid
blockdiag	yuzutech/kroki-blockdiag	BlockDiag, SeqDiag, ActDiag, NwDiag, PacketDiag, RackDiag
bpmn	yuzutech/kroki-bpmn	BPMN
excalidraw	yuzutech/kroki-excalidraw	Excalidraw
wireviz	yuzutech/kroki-wireviz	WireViz

---

MCP server

The MCP server exposes diagram rendering as AI tools. It starts an HTTP file server on port 17432 (auto-increments if taken) alongside the MCP stdio transport.

Available tools:

Tool	Description
render_diagram	Render diagram source text → returns a preview URL
render_file	Render a source file from disk → returns preview URL(s)
list_supported_types	List all supported Kroki types and extensions

The preview URL (e.g. http://127.0.0.1:17432/a1b2c3) opens directly in your browser.

Claude Code

Add globally so it's available in every project:

claude mcp add canopy -s user node /path/to/canopy/mcp.cjs

Or let Claude Code auto-discover it when you open this repo — .mcp.json is already included.

Claude Desktop

Add to ~/Library/Application Support/Claude/claude_desktop_config.json:

{
  "mcpServers": {
    "canopy": {
      "command": "node",
      "args": ["/path/to/canopy/mcp.cjs"]
    }
  }
}

Restart Claude Desktop after editing. The MCP server starts automatically when the app launches.

---

Notes

• diagrams/private/ and src/private/ are gitignored — use them for sensitive diagrams.
• Non-diagram code blocks in .md files are silently skipped.
• Rendered images are saved to ~/.canopy/output/ and persist across reboots. The registry is persisted to ~/.canopy/registry.json and reloaded on each server start, so preview URLs remain valid indefinitely as long as the image file exists on disk.
